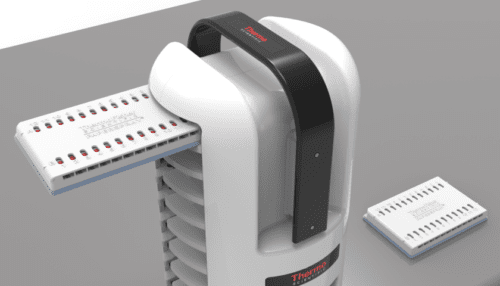

Close-up render of the multi-prep cartridge carrier showing aligned cartridge slots and contoured outer housing.
Case Studies

Cartridge Carrier

Client Snapshot
Sector: Diagnostics

Client Snapshot

Cartridge Carrier

This unique carrier allows for efficient and convenient transport and loading of ThermoFisher Scientific muli-prep cartridges in a high-throughput lab environment. Multiple prepared sample cartridges are loaded in the carrier allowing protective transport to the VeriSpray ion source instrument for quick loading and automated processing.  Many alternative DFM concepts were explored to achieve cost targets while maintaining established corporate design guidelines.

Rendered image of the cartridge carrier positioned beside the ThermoFisher VeriSpray ion source instrument for automated lab workflows.

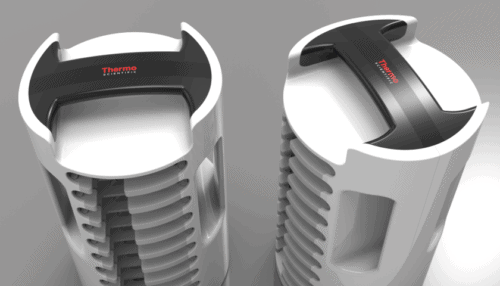

Rendered views of the cartridge carrier from two angles showing the curved top handle and stacked cartridge bays.
Rendered image of the cartridge carrier with the front door open showing internal cartridge slots and vertical loading structure.

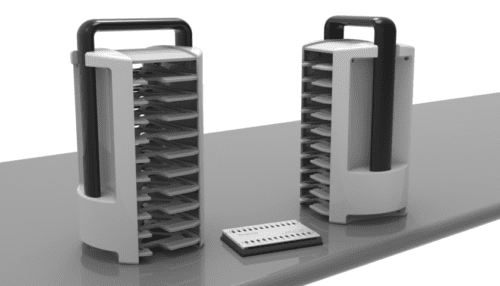

Two cartridge carriers placed on a lab bench with cartridges arranged beside them, highlighting loading and transport functionality.
